494.4xx BMT Radial 8000rpm/70bar
Central Mount

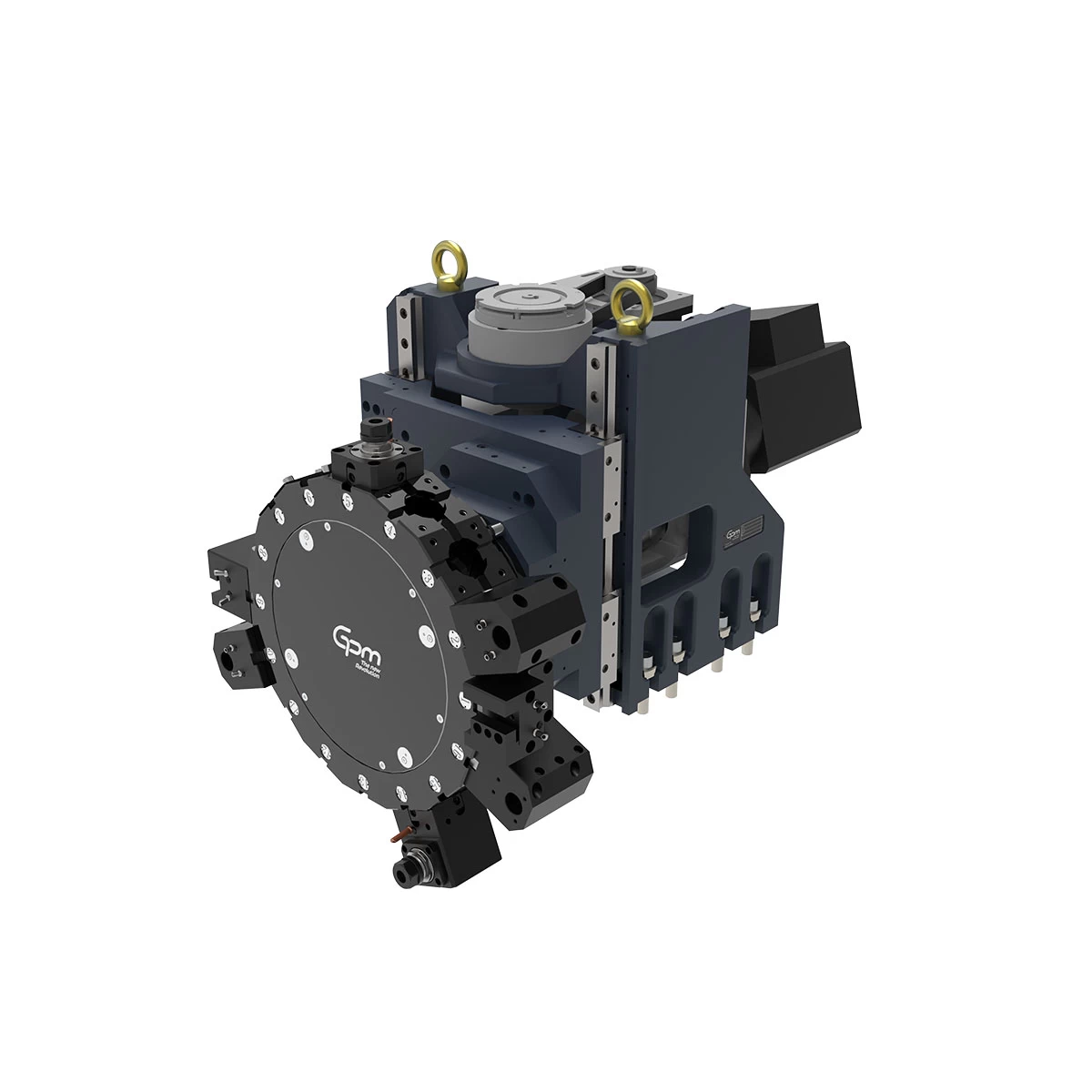

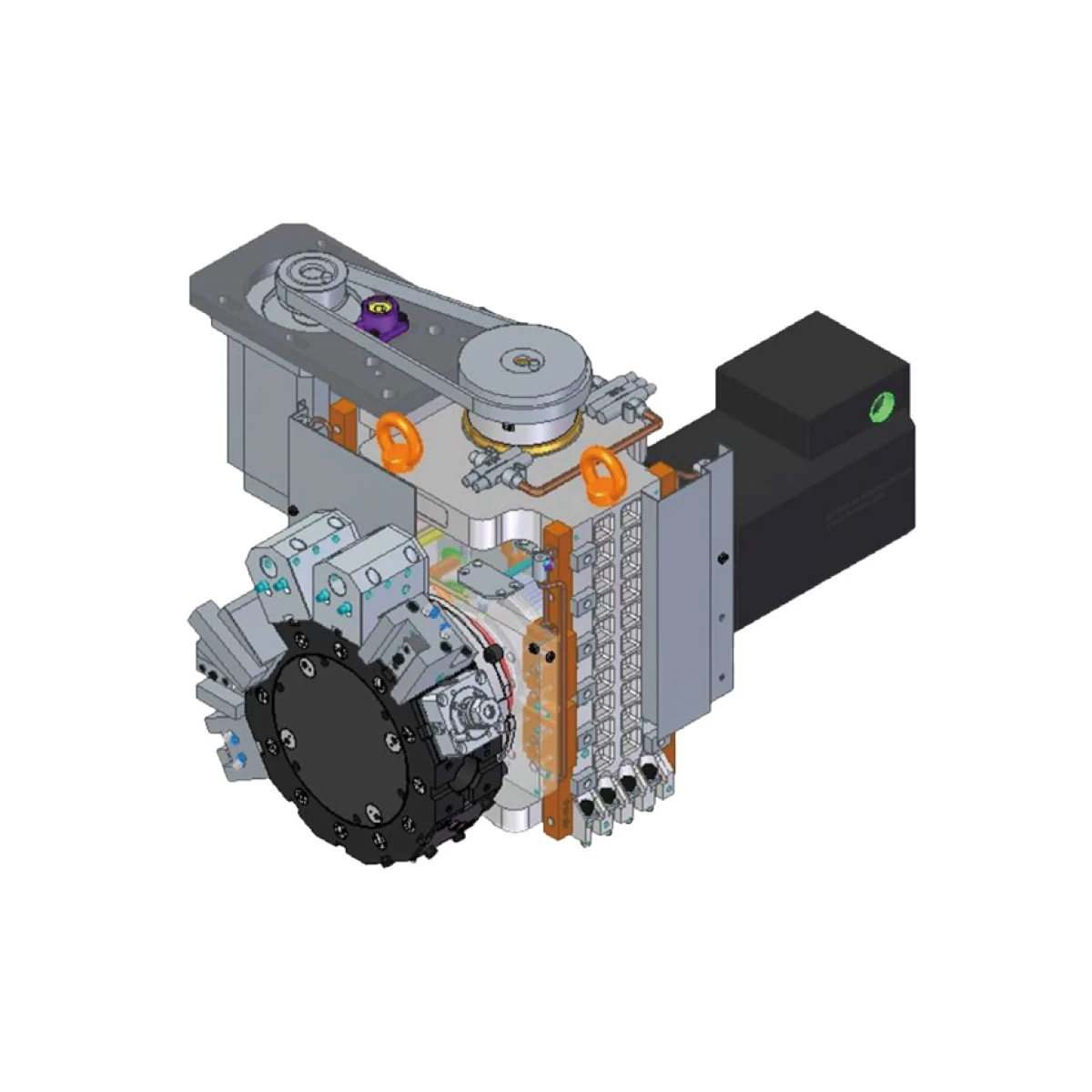

Central Mount Type

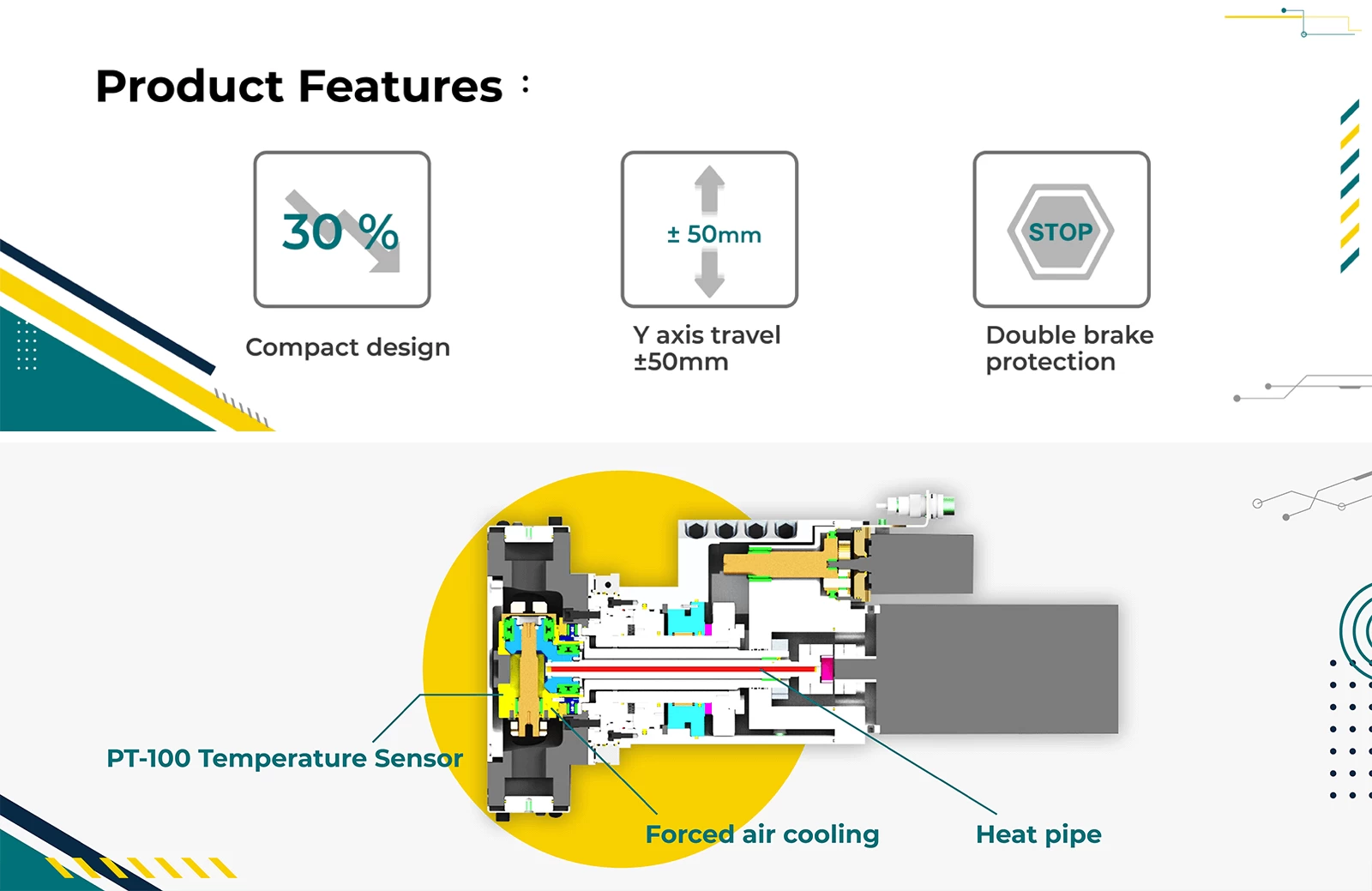

- Central Mount Y-Axis Design with approximately 30% less machining interference
- Upgraded 8,000 rpm High-Speed Driven System for advanced multitasking machining
- 70 Bar Through-Tool Coolant Capability for efficient chip evacuation and cooling performance
- High-Rigidity Structure for stable cutting and precise positioning
- Proven Continuous Operation Performance up to 24 hours at 6,000 rpm and 30 minutes at 8,000 rpm
Applications
- Valve, nozzle, plate type, tube type workpiece milling industry.

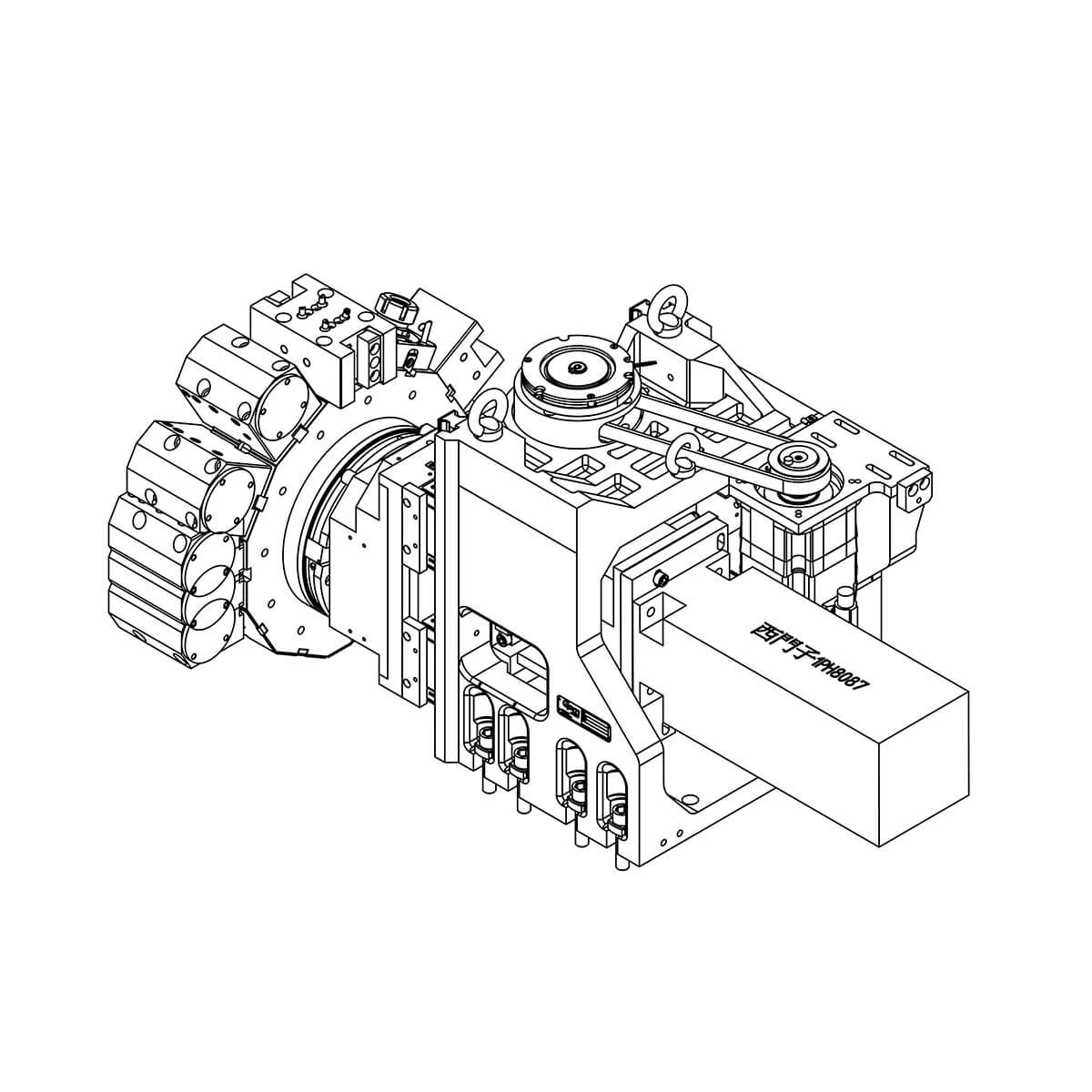

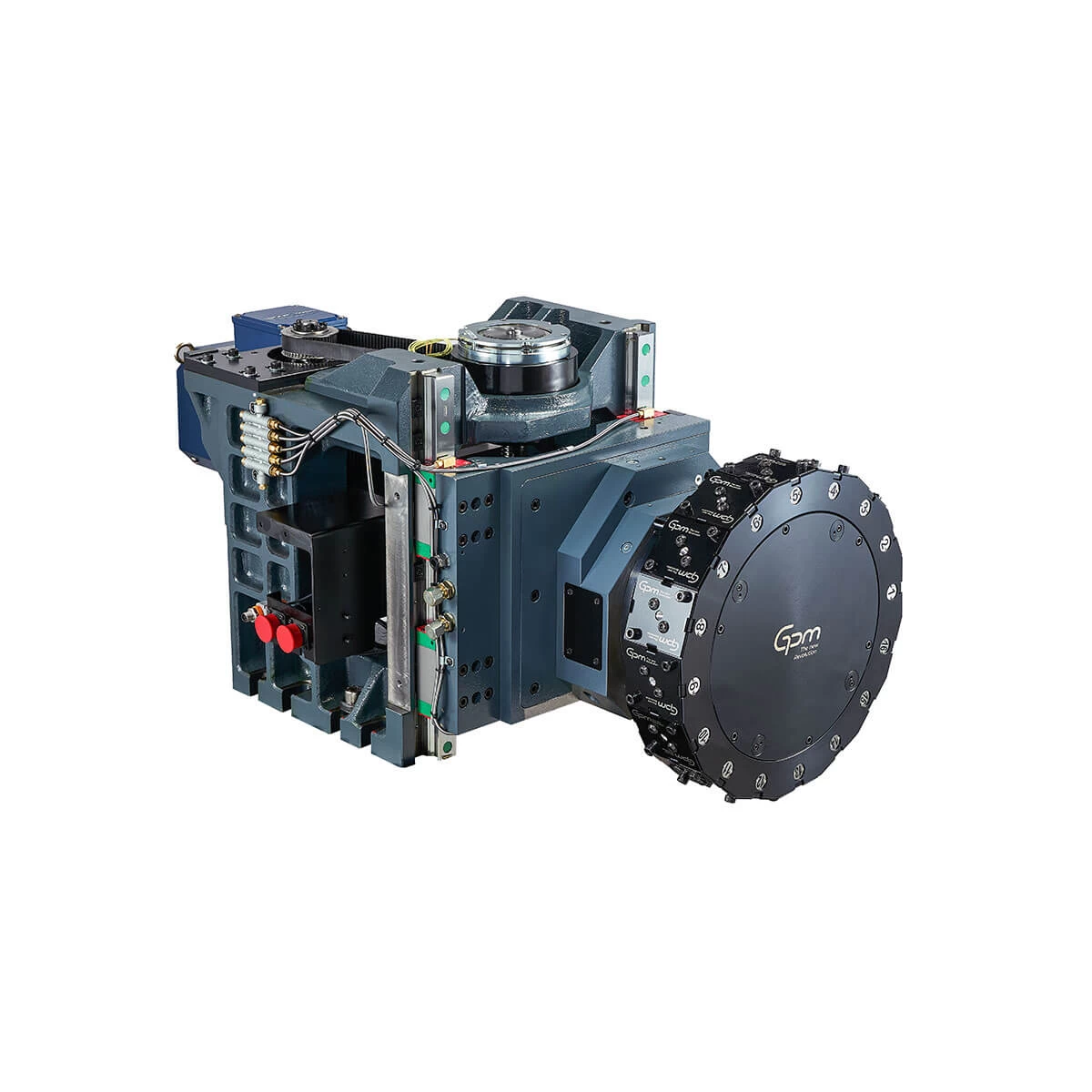

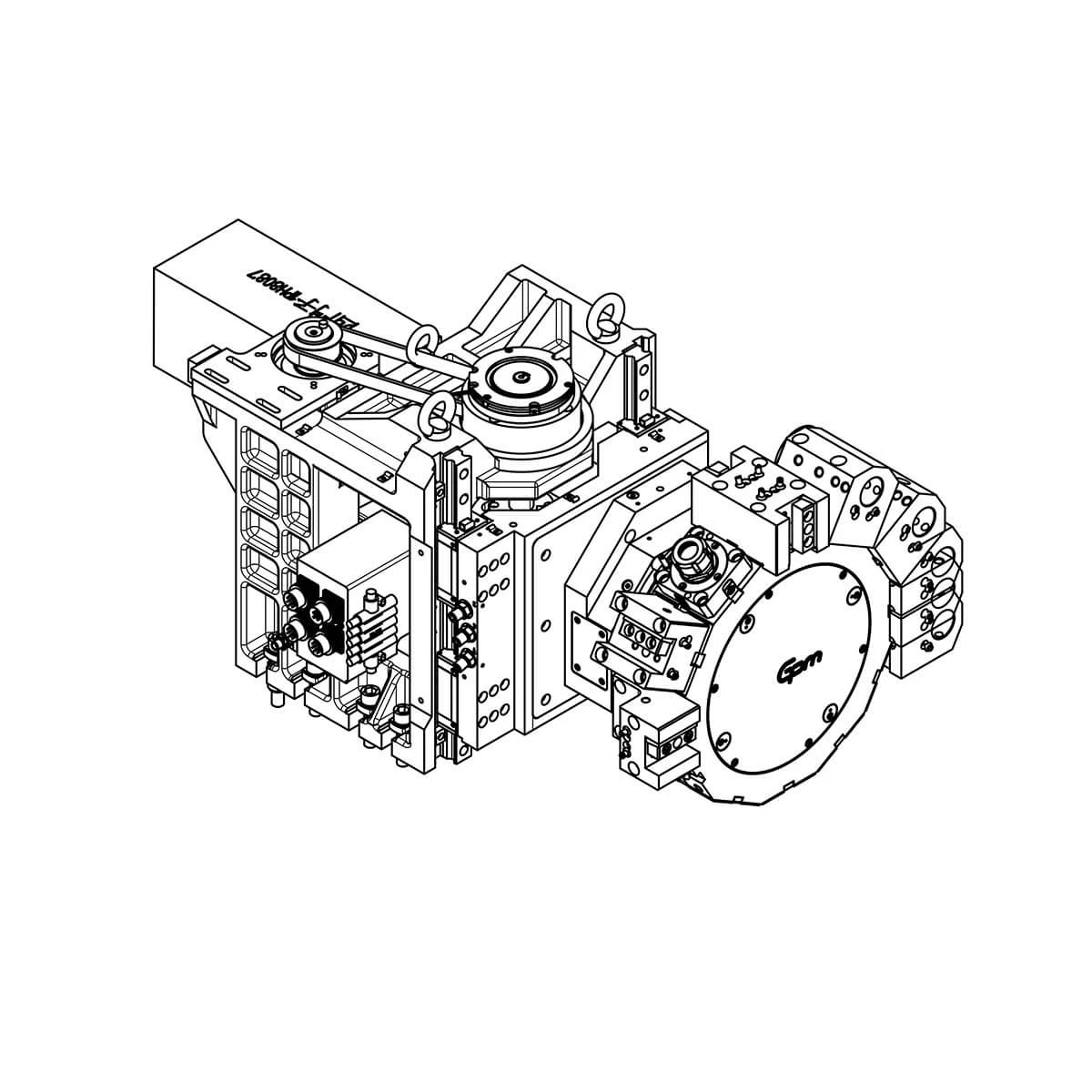

What is the 494.4xx BMT Central Mount Y-Axis Driven Turret?
The 494.4xx BMT Central Mount Y-Axis Driven Turret is designed for CNC turning centers and multitasking machines requiring advanced milling capabilities and high machining flexibility.
By integrating a central mount Y-axis structure with an upgraded high-speed driven system, the turret enables turning, milling, drilling, and tapping operations to be completed within a single setup.
Compared with conventional turret configurations, the central mount Y-axis design reduces machining interference by approximately 30%, providing improved tool accessibility and enhanced machining flexibility for complex workpieces.
Combined with an upgraded 8,000 rpm driven system and 70 bar through-tool coolant capability, the turret delivers reliable performance for precision machining applications.
